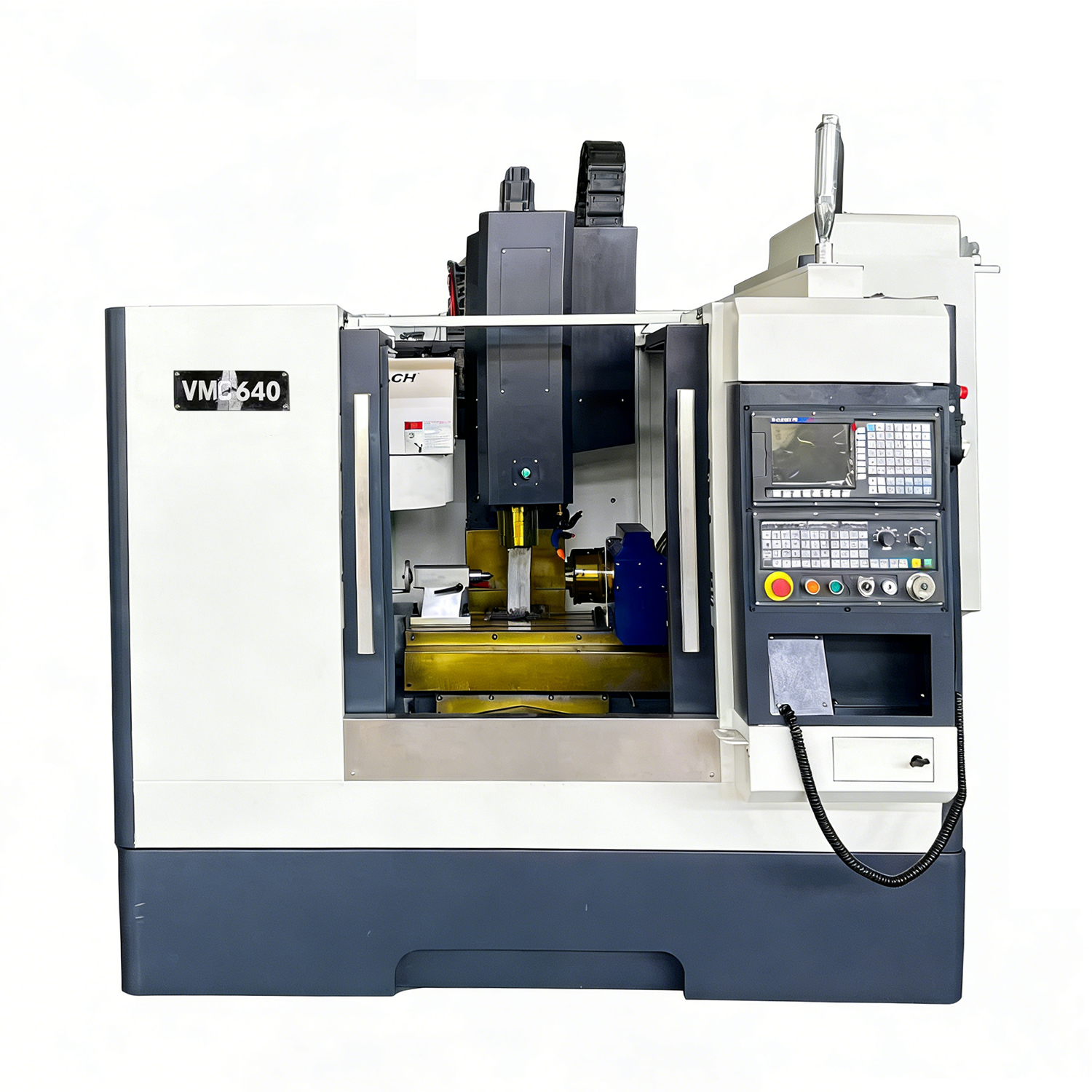

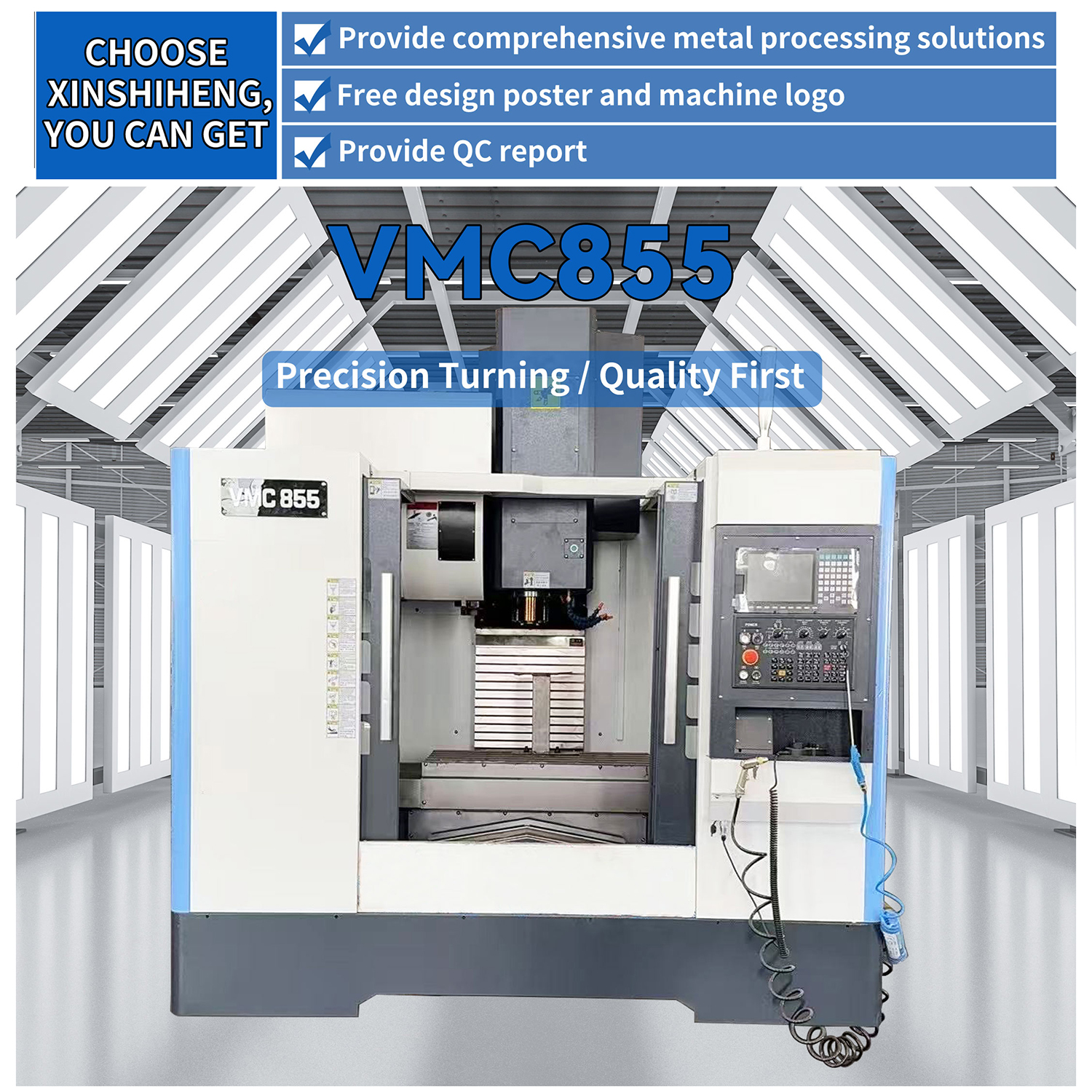

VMC Machine Drilling and Milling Machine Optional 3,4,5 Axis CNC Machine
Technology Parameter
| Working Base | Items | Unit | VMC640 | VMC855 | VMC1160 | |||
| Size | mm | 800*400 | 1000*500 | 1200*600 | ||||
| Bearing capacity | kg | 500 | 500 | 1000 | ||||
| T-slot size(each) | mm | 18*3 | 18*5 | 18*5 | ||||
| Processing Range | X axis drive | mm | 600 | 800 | 1100 | |||
| Z axis drive | mm | 450 | 550 | 600 | ||||
| Y axis drive | mm | 400 | 550 | 600 | ||||
| Spindle nose to table | mm | 100-550 | 140-690 | 120-720 | ||||
| Spindle nose to column | mm | 390 | 600 | 650 | ||||
| Spindle | Taper hole | BT40 | BT40 | BT40 | ||||
| Revolving Speed | rpm | 50-8000 | 50-8000 | 50-8000 | ||||
| Max. output torque | N.m | 48 | 70 | 70 | ||||
| Spindle Motor | Kw | 11/15 | 11/15 | 11/15 | ||||
| Spindle type | Timing Belt | Timing Belt | Timing Belt | |||||
| Tool | Shank | MAS403 BT40 | MAS403 BT40 | MAS403 BT40 | ||||
| Rivet | MAS403 BT40-I | MAS403 BT40-I | MAS403 BT40-I | |||||
| Feeding | Three-axis drive motor torque(X/Y/Z） | Nm | 8/8/18 | 18/18/28 | 18/18/28 | |||
| Fast feeding velocity | m/min | X:24 / Z:24/Y:24 | X:24 / Z:24/Y:24 | X:32 / Z:32/Y:30 | ||||
| Feed Speed | mm/min | 1-18000 | 1-20000 | 1-20000 | ||||
| Power Capacity | Power Capacity | kVA | 25 | 25 | 25 | |||
| Position | Positioning Accuracy | mm | 0.01 | 0.01 | 0.01 | |||
| Repeat Positioning Accuracy | mm | 0.006 | 0.008 | 0.008 | ||||
| Machine tool volume | Height of machine | mm | 2400 | 2600 | 2800 | |||
| Floor space | mm x mm | 2300x 2100 | 3200x 2400 | 3800x 2600 | ||||
| Weight | kg | 2850 | 4800 | 6200 | ||||

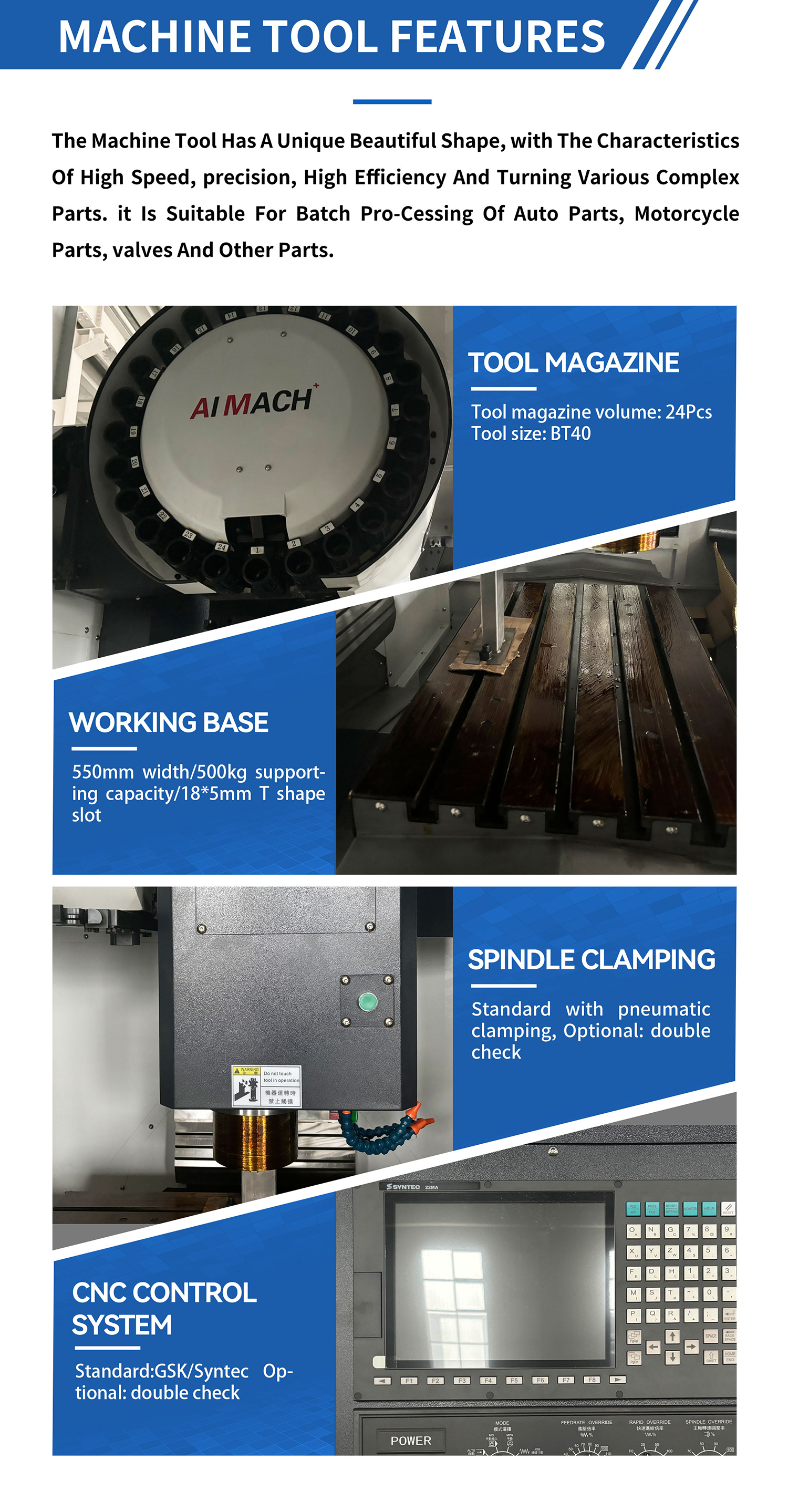

product description

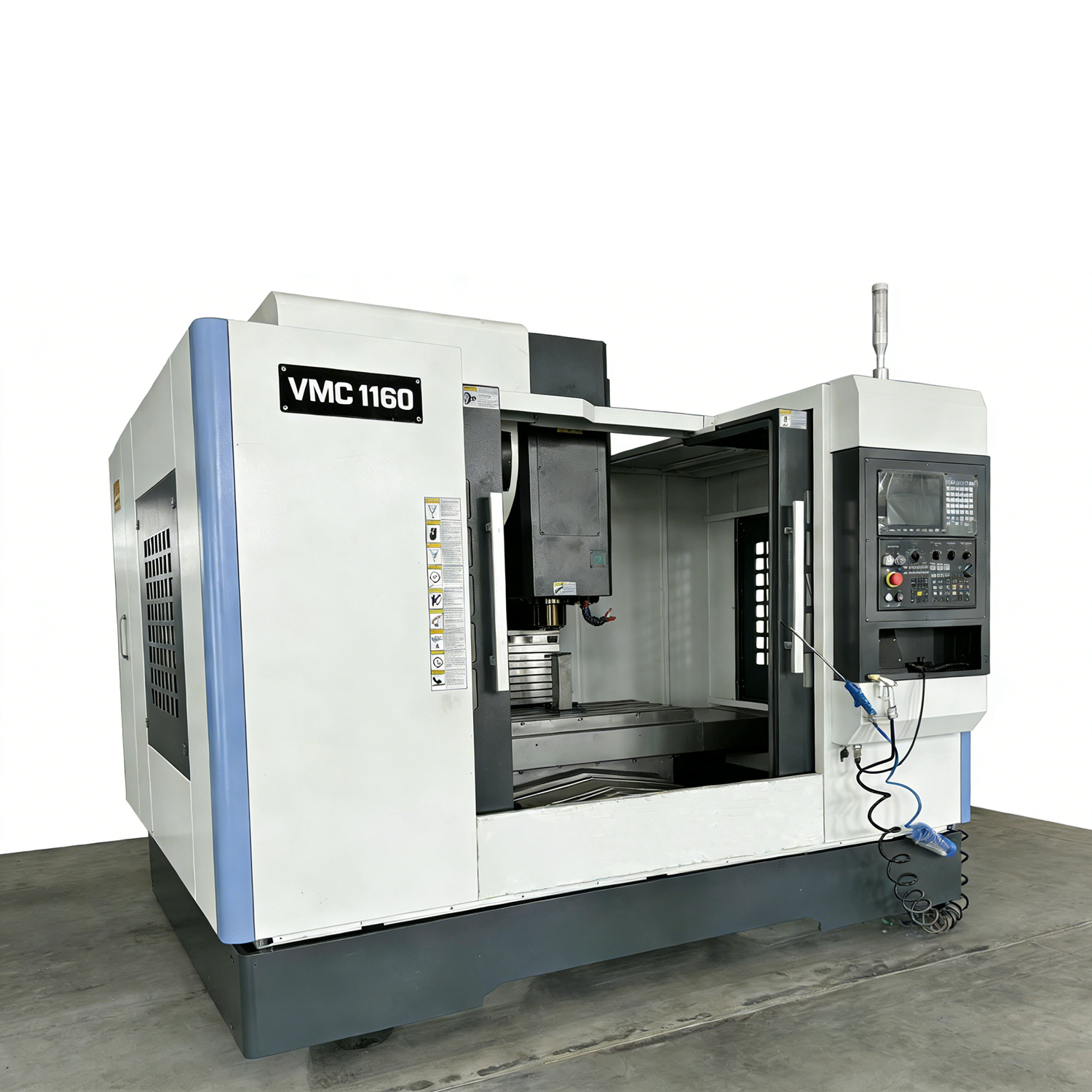

1. Machine Tool Overall Layout
The VMC1160 vertical machining center adopts a vertical frame structure with the column fixed to the bed. The spindle head moves vertically along the column (Z-axis), the saddle moves longitudinally along the bed (Y-axis), and the worktable moves transversely along the saddle (X-axis). Key components such as the bed, worktable, saddle, column, and spindle head are made from high-strength cast iron using resin sand molding technology. These components undergo double stress-relief aging treatment and are optimized via Pro/E and Ansys simulations to enhance structural rigidity and stability, effectively minimizing deformation and vibration caused by cutting forces.
2. Drive System
Three-axis guide ways: Equipped with imported linear rolling guides featuring low static/dynamic friction, high sensitivity, minimal high-speed vibration, no low-speed crawling, and superior positioning accuracy. This ensures excellent servo drive performance and enhances machining precision and stability.
Direct coupling: Three-axis servo motors are directly connected to high-precision ball screws via flexible couplings, eliminating intermediate components for backlash-free transmission, flexible feed, and accurate positioning.
Z-axis safety: The Z-axis servo motor includes an automatic brake function that engages during power failure to lock the motor shaft, ensuring safety.

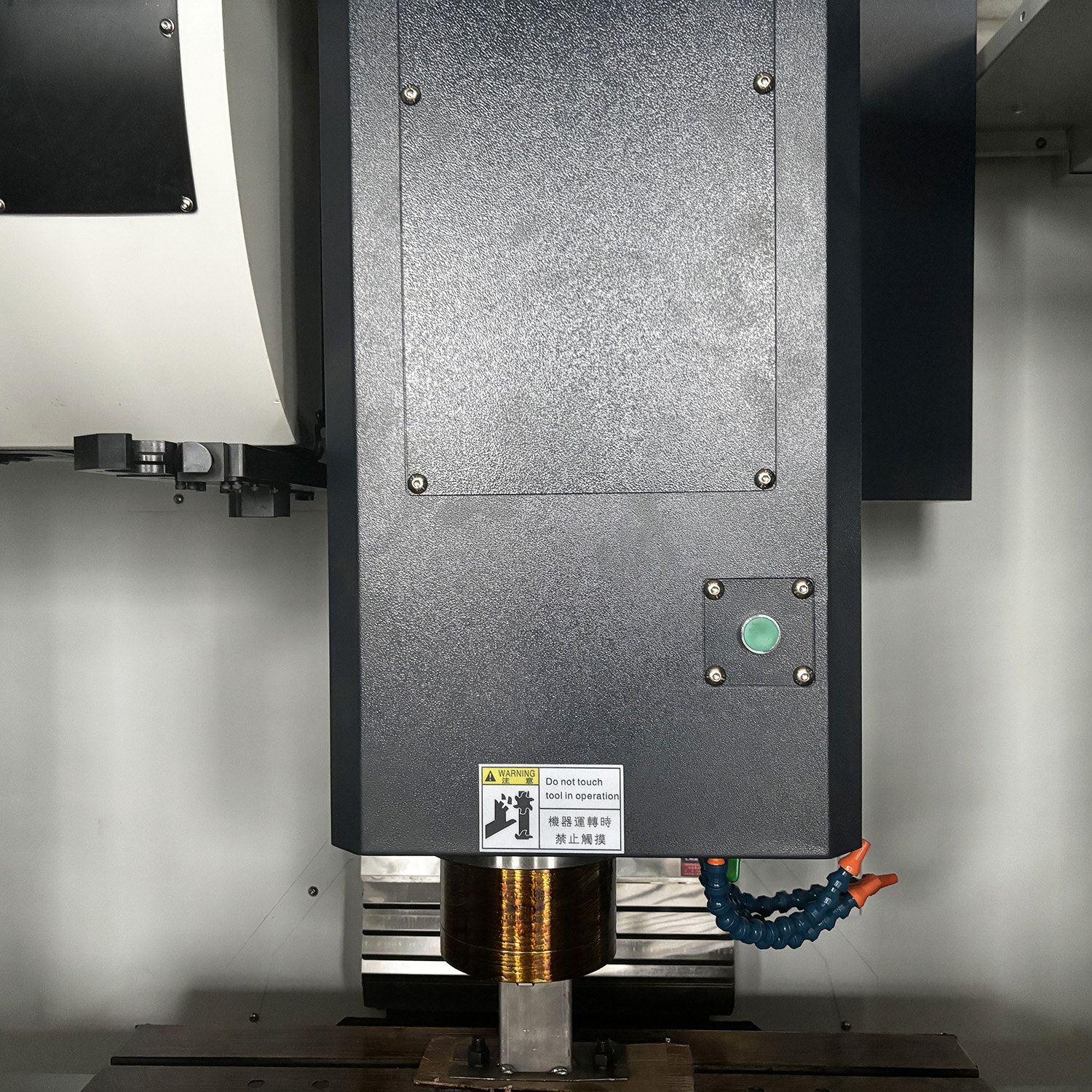

3. Spindle Assembly
Manufactured by a specialized Taiwanese supplier, the spindle assembly offers high precision and rigidity. Equipped with P4-grade precision spindle bearings, the entire assembly undergoes dynamic balancing and run-in testing in a temperature-controlled environment to extend service life and reliability. The spindle features infinitely variable speed control within its range.

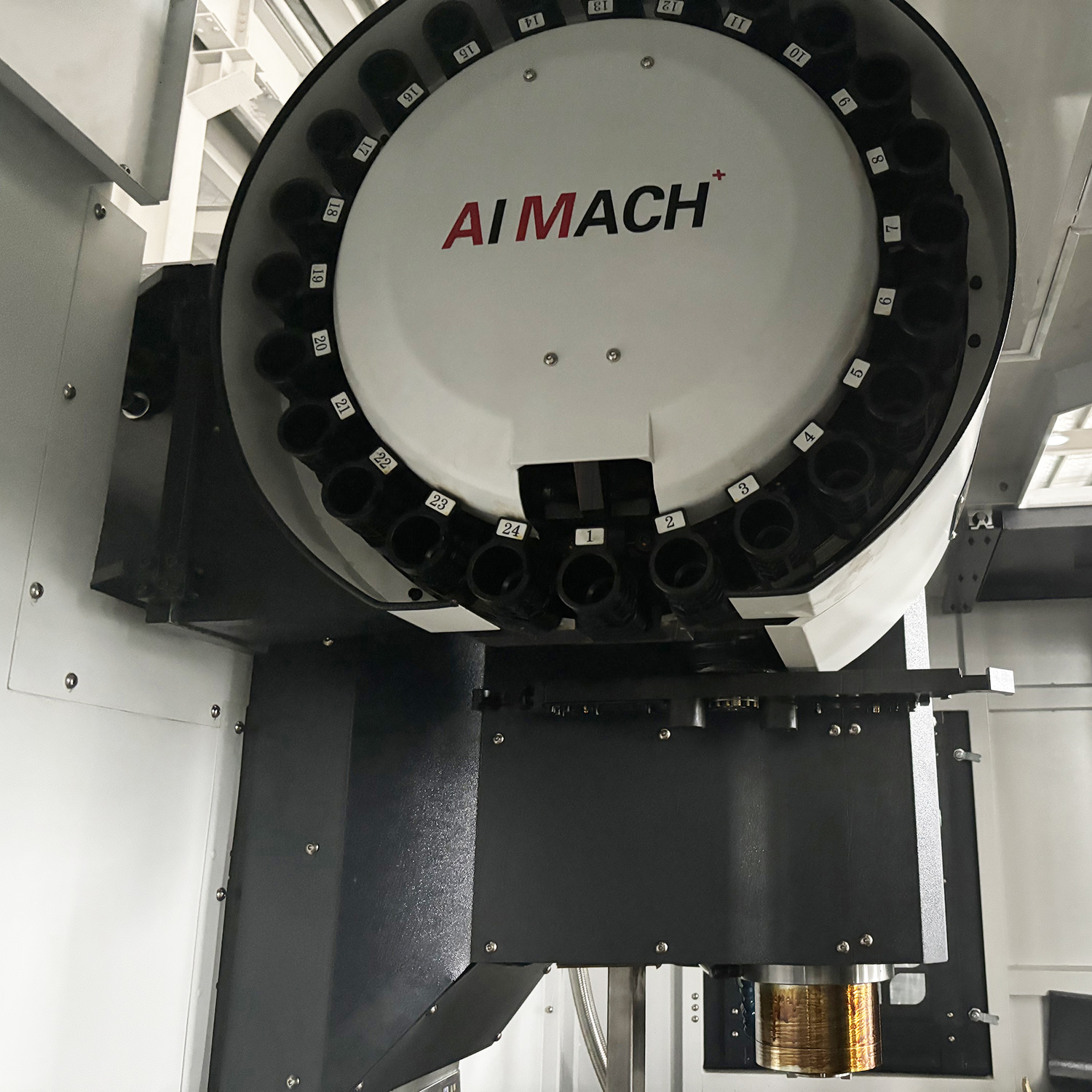

4. Tool Magazine
Robotic tool changer: Mounted on the column side, the tool disk is driven and positioned by a roller cam mechanism.
Automatic Tool Changer (ATC): Utilizes a preloaded gear cam mechanism for fast, quiet, and precise tool exchange (tool release/loading) once the spindle reaches the designated position.
5. Cutting Cooling System

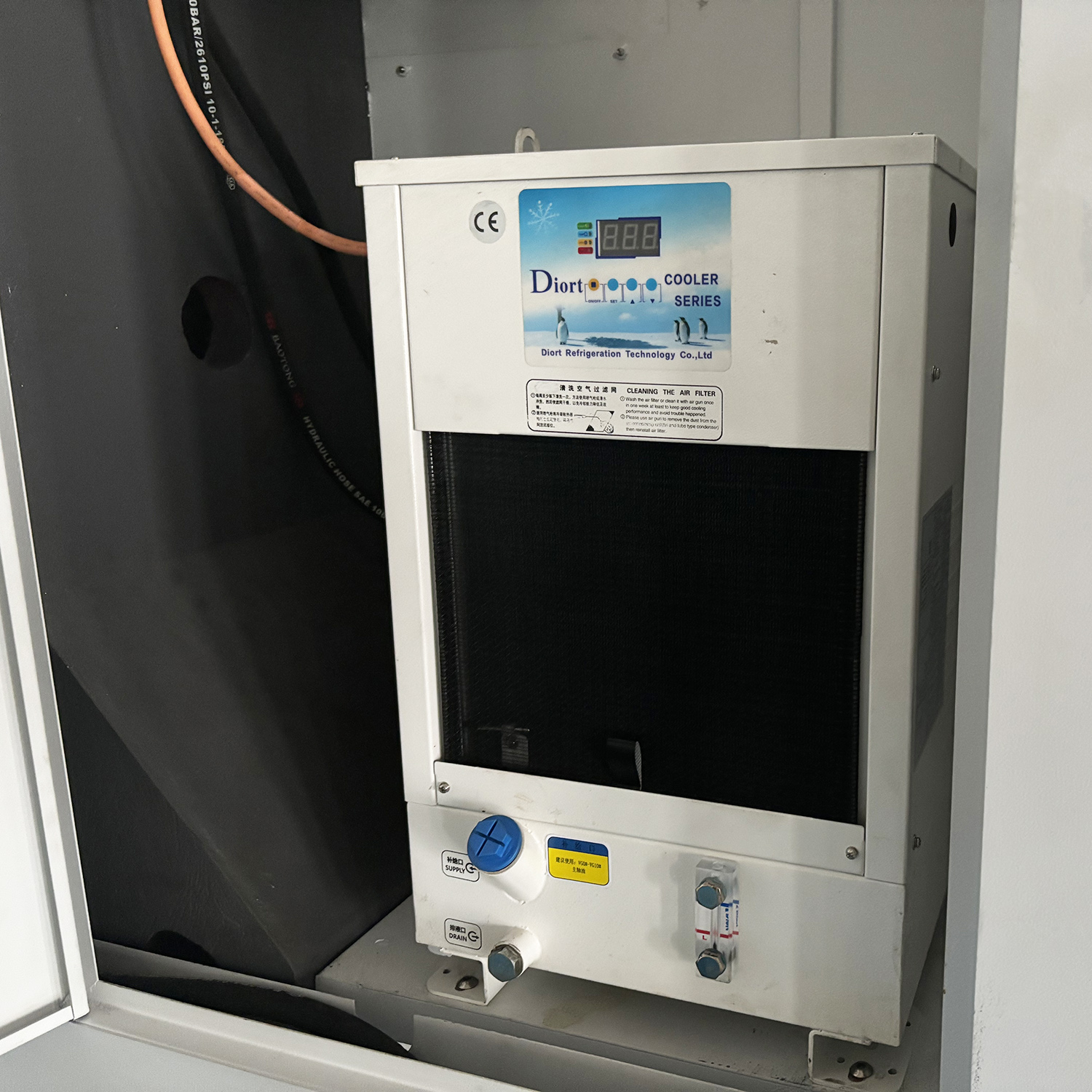

High-capacity cooling: Includes a high-flow coolant pump (0.48 kW, 3 bar pressure) and large tank for efficient circulation.
Dual-mode cooling: The spindle head features switchable air/water cooling nozzles controllable via M-code or panel operation.
Cleaning: An air gun is provided for machine maintenance.
6. Pneumatic System
Filtration: The pneumatic triple unit removes impurities and moisture from the air supply to prevent component damage/corrosion.

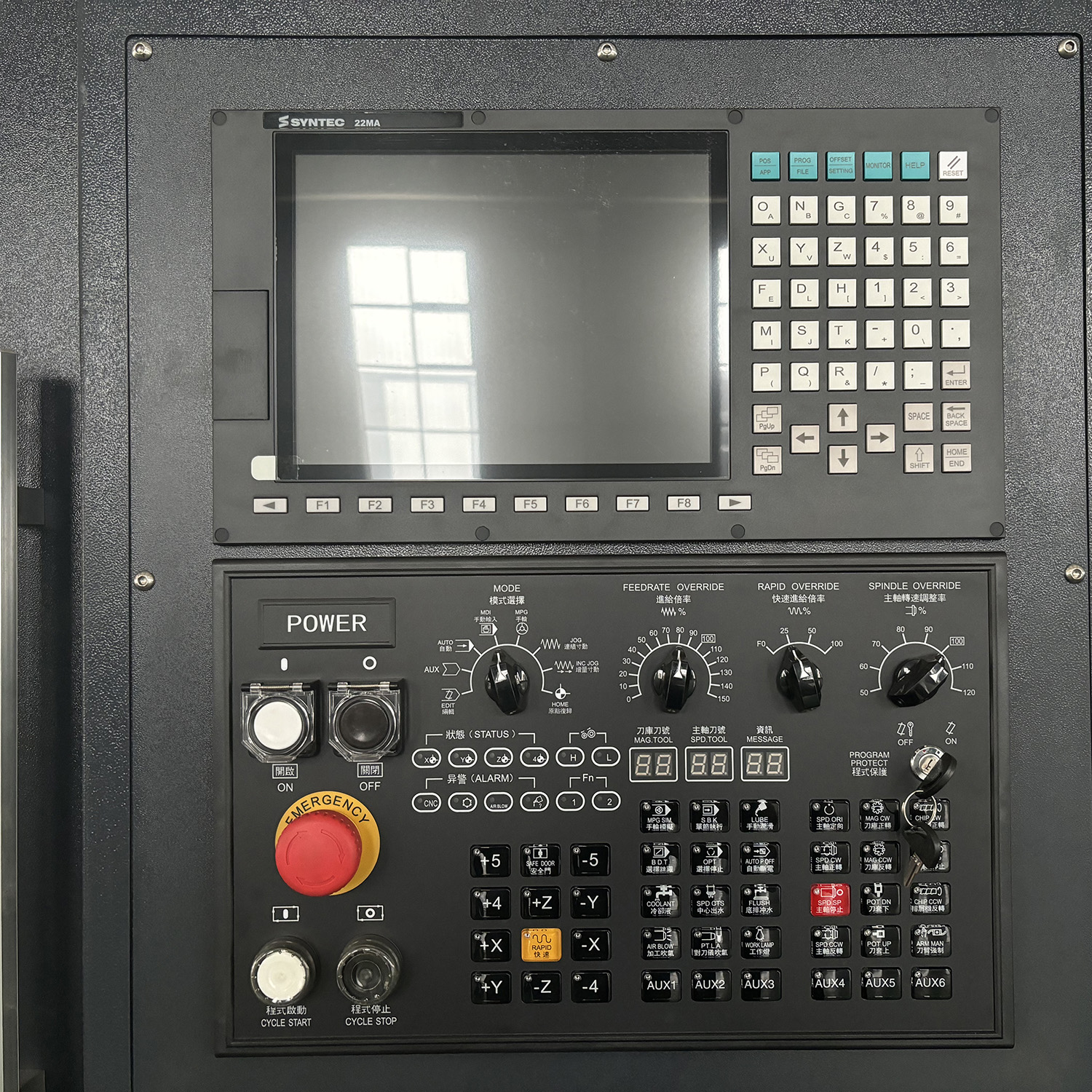

PLC-controlled valves: Ensure rapid and precise execution of spindle tool release, center air blast, tool clamping, and air cooling.
7. Lubrication System
Centralized auto-lubrication: Delivers metered oil to guide ways and ball screws via quantitative distributors, reducing friction, improving motion accuracy, and prolonging component lifespan.
8. Machine Protection
Full enclosure: Complies with safety standards, preventing coolant splashing while ensuring operator safety and aesthetic appeal.
Guideway covers: Shield against chips and coolant ingress to protect ball screws and guides from wear/corrosion.
9. Chip Conveyor (Optional)
Y-axis split guards: Direct chips onto the bed, where an internal inclined surface guides them to a bottom-mounted chain conveyor. Chain conveyor: Features high capacity, low noise, overload protection, and compatibility with various chip types (fragmented or coiled).
