Small High Precision CNC Lathe Machinewith Flat Bed

MACHINE TOOL FEATURES
This kind of lathe is a small horizontal bed CNC lathe machine, it is a cost-effective machine. It adopts an integral high-strength cast iron bed, which can effectively eliminate internal stress after aging treatment, ensuring the stability of the bed, compact structure and small footprint. The guide rail has high hardness and good wear resistance, can withstand large cutting forces, and ensure that the cutting accuracy can be maintained after long-term use. The semi-enclosed or fully enclosed protection can effectively prevent cutting and coolant splashing, ensuring safe operation and a clean working environment. It is suitable for processing small and medium-sized parts made of cast iron, steel, alloy and other materials.

    VIDEO

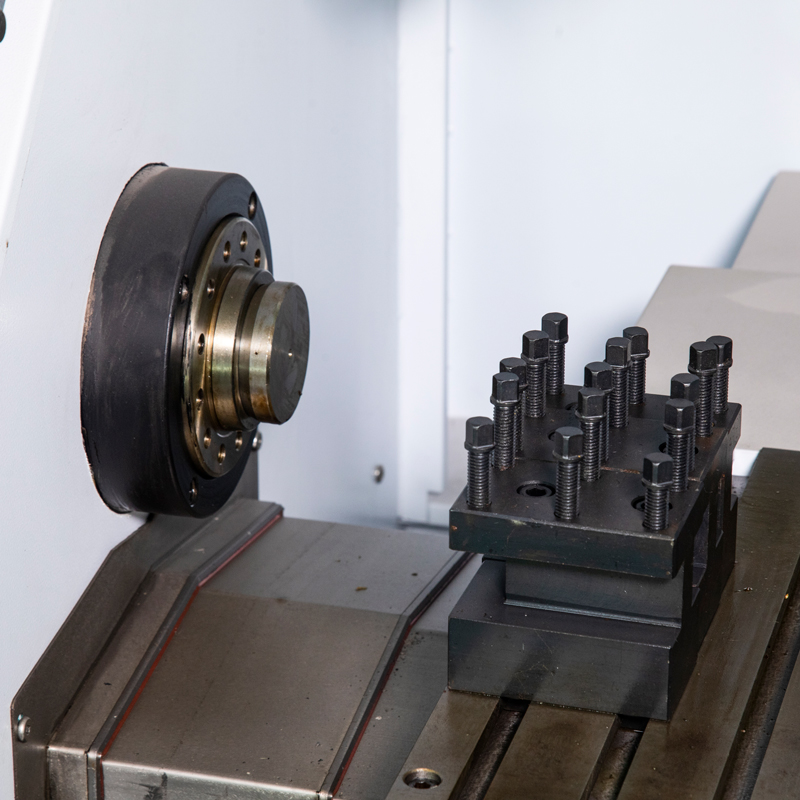

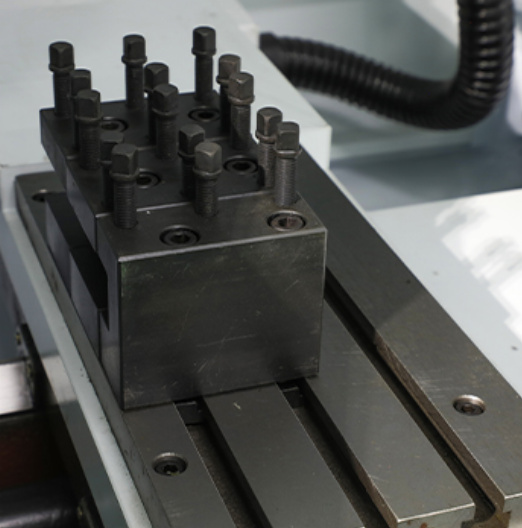

    TOOL POST/TURRET

    Standard with row tool post, Optional: 4 station electric tool post, others double check
    product description01

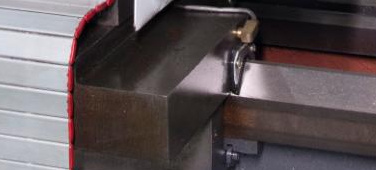

    HORIZONTAL HARD GUIDE RAIL

    product description02

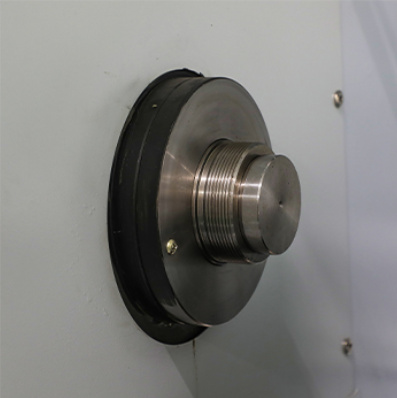

    PRECISION CHUCK

    Standard with pneumatic clamping, Optional: manual chuck, hydraulic chuck or collet
    product description03

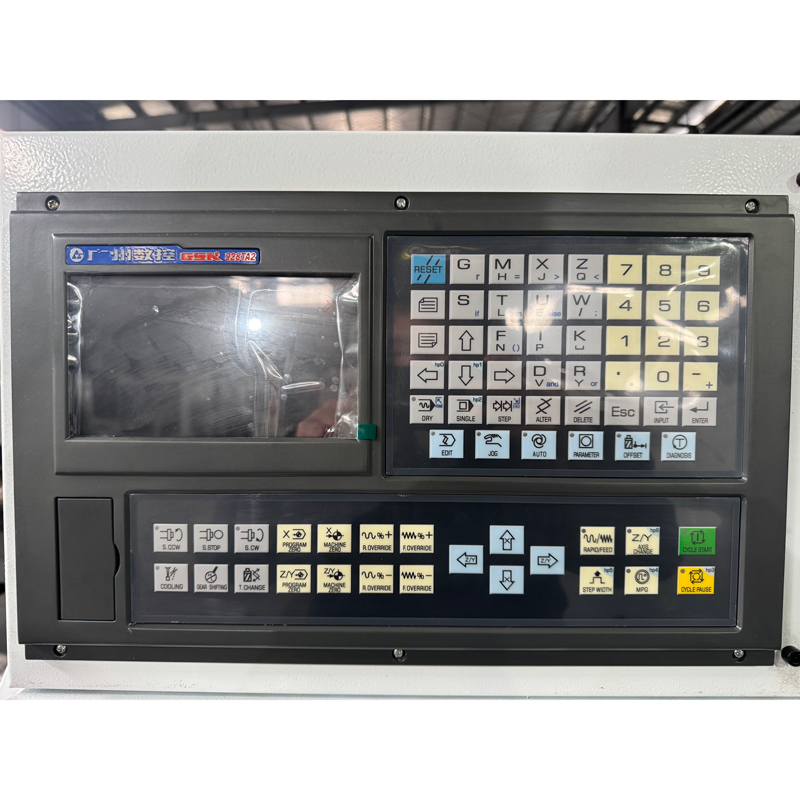

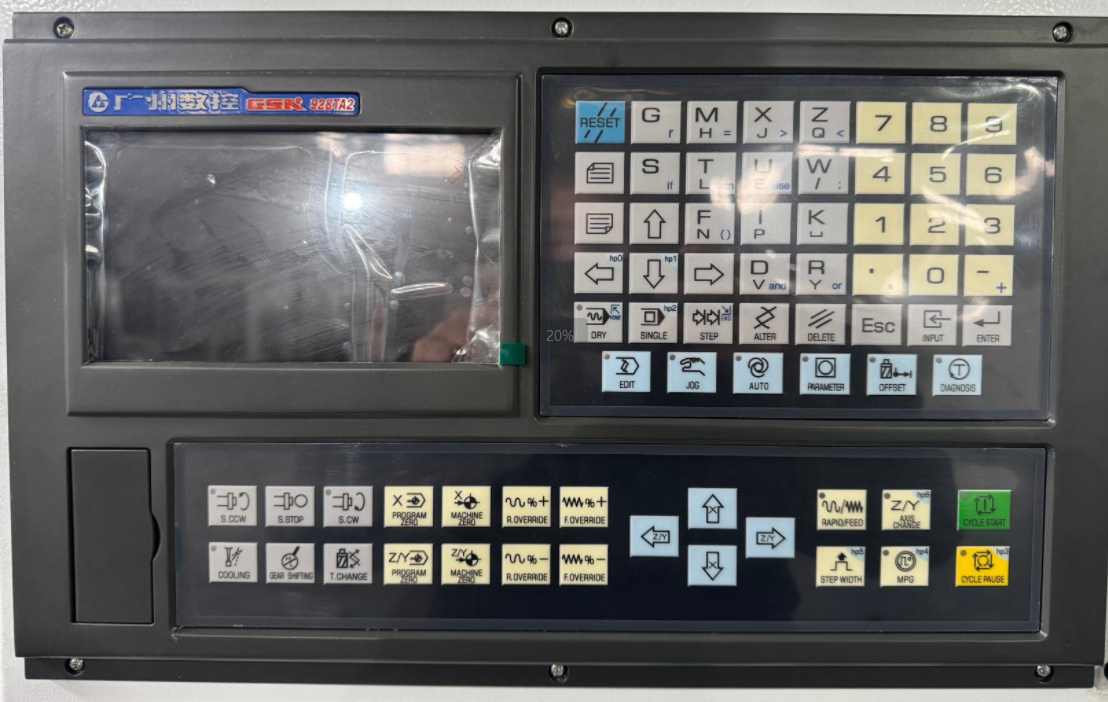

    CNC CONTROL SYSTEM

    Standard:GSK928TA2, Optional:double check
    product description04

    Parameter

    SPECIFICATIONS

    Units

    CK0632

    CK0640

    Machining Capacity

    Maximum turning diameter over bed

    mm

    250

    300

    Maximum turning diameter over turret

    mm

    32

    160

    Maximum machining length

    mm

    100

    150

    Maximum bar machining diameter

    mm

    Ø32

    Ø40

    Diameter of spindle bore

    mm

    Ø40

    Ø48

    Maximum stroke of X/Z

    mm

    520/260

    560/330

    Power System

    Spindle maximum spindle speed

    r/min

    3000

    3000

    Spindle Motor

    kw

    3

    4

    Spindle Transducer

    kw

    4

    4

    X/Z drive motor

    n/m

    4/4

    4/4

    Tool Post

    Height of rectangular tool shank section

    mm

    25

    25

    Precision

    Repeat Positioning accuracy

    mm

    0.01

    0.01

    Machining accuracy

    mm

    <0.01

    <0.01

    Spindle beat

    mm

    <0.01

    <0.01

    Other

    Hydraulic pump motor

    kw

    0.75

    0.75

    Cutting fluid pump motor

    kw

    0.4

    0.4

    Power supply power

    kva

    7.5

    7.5

    Machine weight

    kg

    750

    850

    Machine Size

    mm

    1400x1000x1600

    1600x1100x1600
