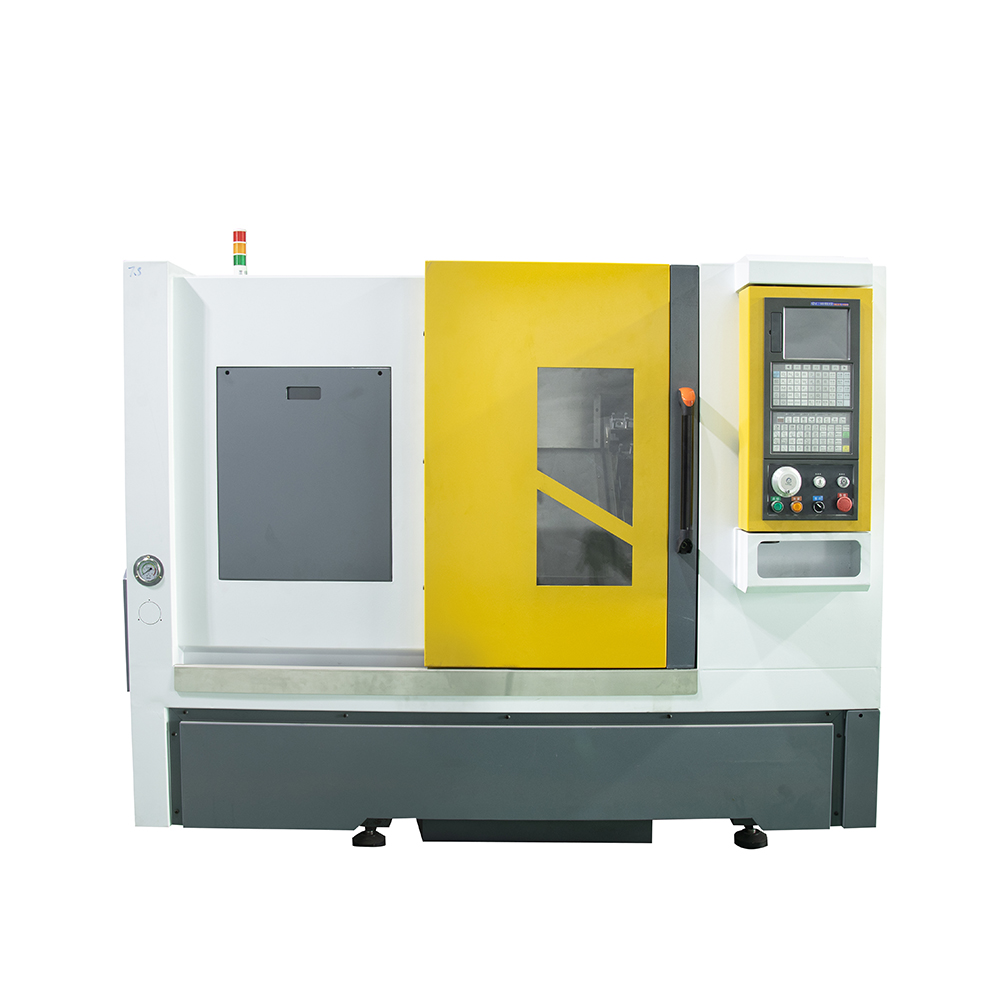

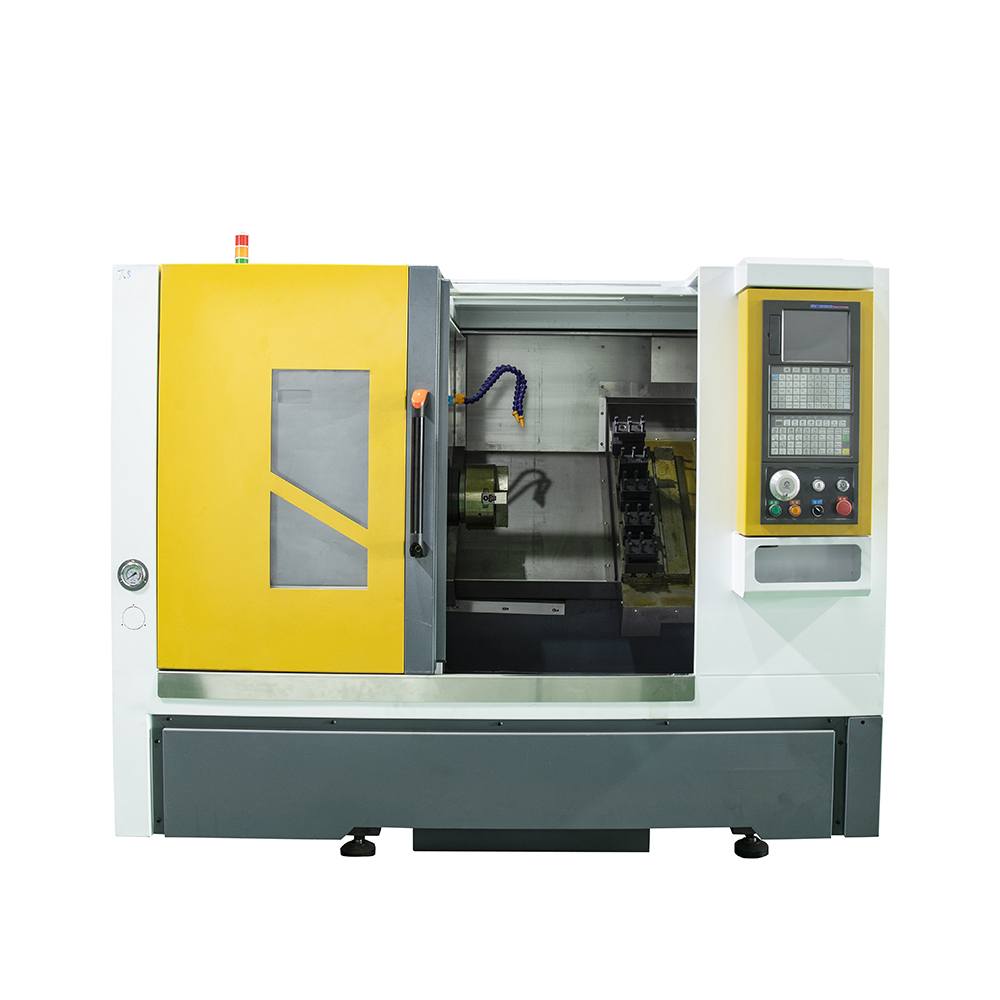

Heavy Duty Integral Slant Bed CNC Lathe Machine Turning and Milling Machine
Products Video
Technology Parameter
| Parameter | SPECIFICATIONS | Units | XG50 |
| Machining Capacity | Maximum turning diameter over bed | mm | 500 |
| Maximum machining length | mm | 200 | |
| Maximum bar machining diameter | mm | 52 | |
| Diameter of spindle bore | mm | 60 | |
| Maximum stroke of X/Z | mm | 800/500 | |
| Power System | Spindle maximum spindle speed | r/min | 4000 |
| Spindle Motor | KW | 5.5 | |
| X/Z drive motor | N/M | 6/6 | |
| Feed Velocity | Fast Feed velocity | m/min | X:15/Z:20 |
| Tool Post | Height of rectangular tool shank section | mm | 20 |
| Diameter of boring bar shank | mm | 25 | |
| Precision | Repeat Positioning accuracy | mm | 0.01 |
| Machining accuracy | mm | 0.01 | |
| Spindle beat | mm | 0.01 | |
| Other | Power supply power | KVA | 7.5 |
| Machine weight | kg | 2300 | |
| Machine Size | mm | 2000x1500x1800 |

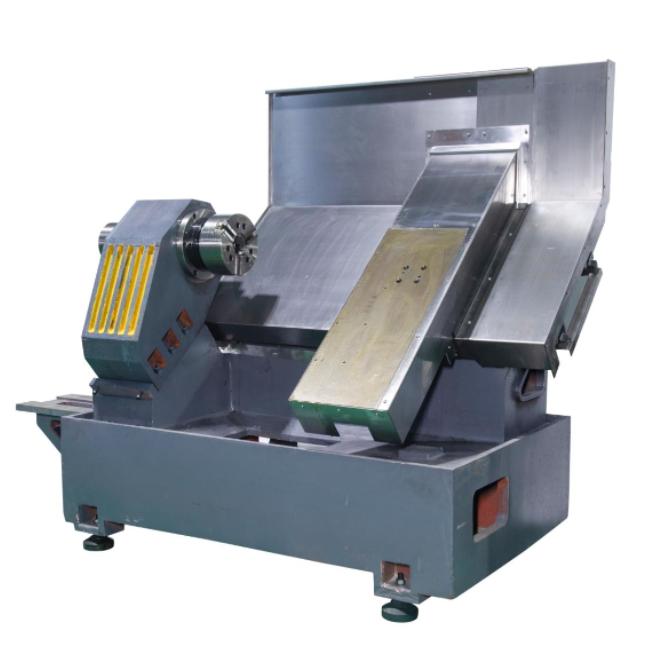

Features
- High precision: The slant bed structure design makes the machine tool have better rigidity and stability, which can effectively reduce vibration and deformation during processing, thereby improving processing accuracy.High efficiency: This kind of CNC machine tools are usually equipped with high-speed spindles and fast feed systems, which can achieve high-speed cutting and fast positioning, greatly improving processing efficiency.Large processing range: Medium and large inclined bed CNC machine tools have a large processing stroke and worktable size, which can meet the processing needs of medium and large parts.Good chip removal performance: The slant bed design is conducive to the natural sliding of chips, which is convenient for chip removal, reduces the impact of chips on the processing process, and improves the stability and reliability of processing.

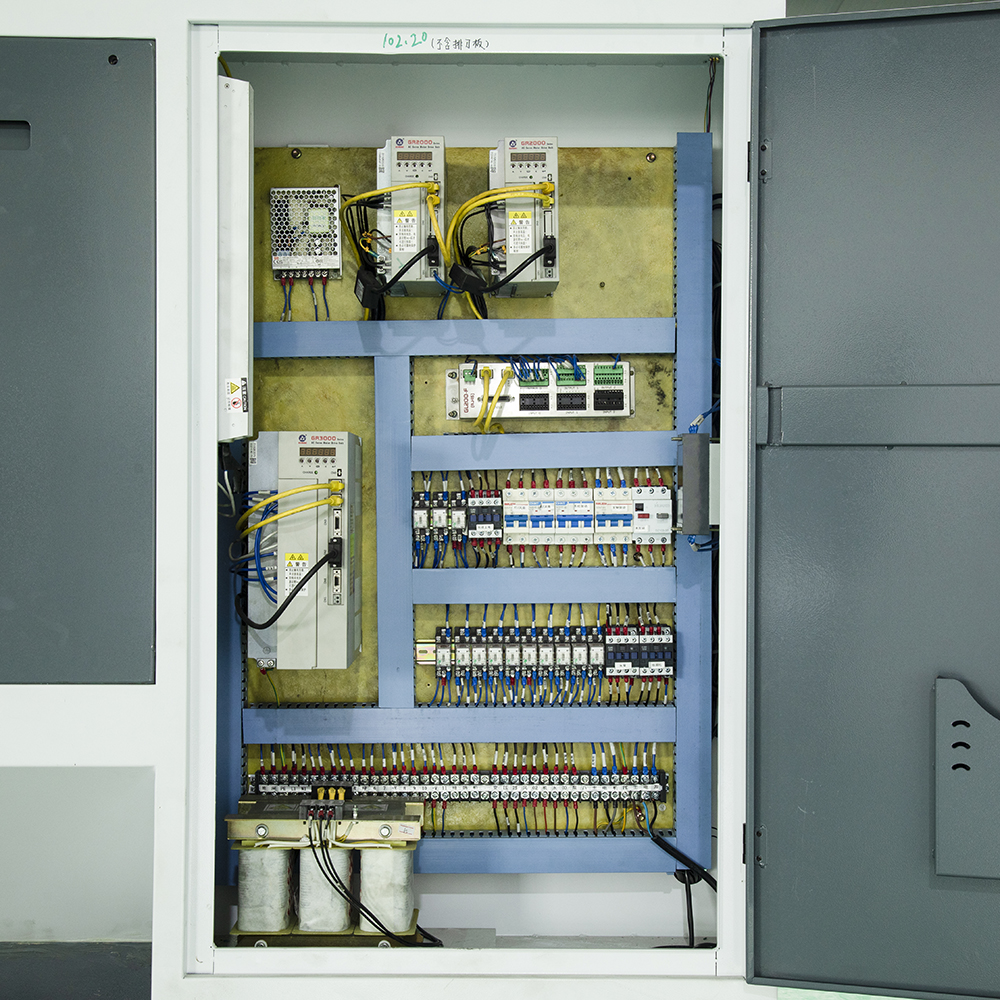

- 1.CNC Control System

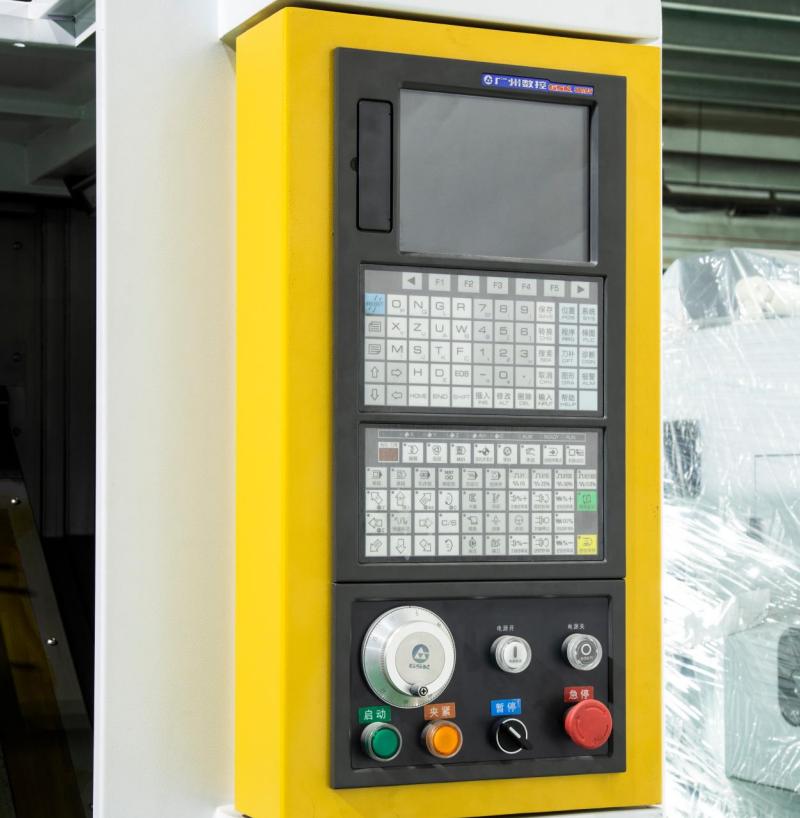

The standard configuration with GSK980TB3i bus system, other options: SYNTEC, KND
- 2.Hydraulic Chuck

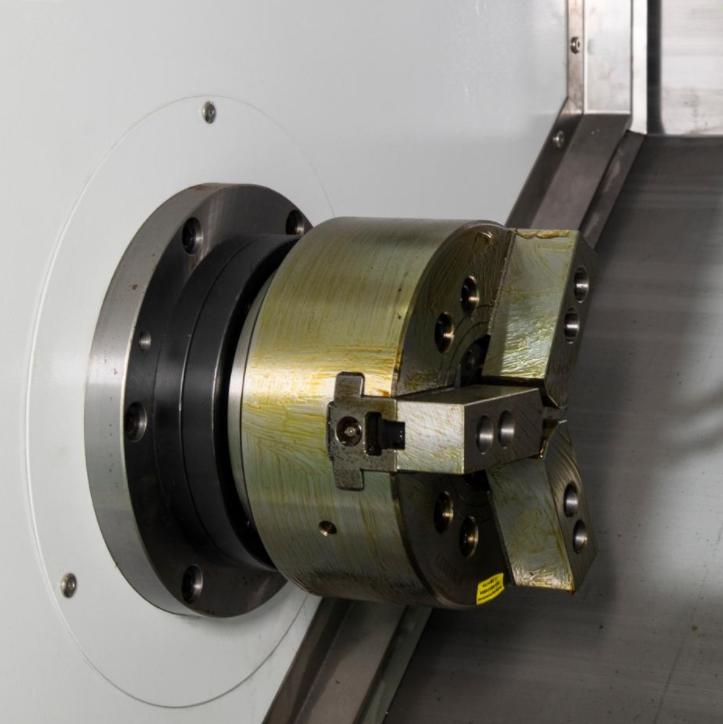

Equipped with a high-torque spindle unit and hydraulic chuck. The hydraulic chuck has strong clamping force, high clamping precision, fast clamping speed, is made of high-strength materials, has a solid structure, high reliability, and can run stably for a long time. It is suitable for various types of CNC lathes and can clamp workpieces of different shapes and sizes.
- 3.Row tool post

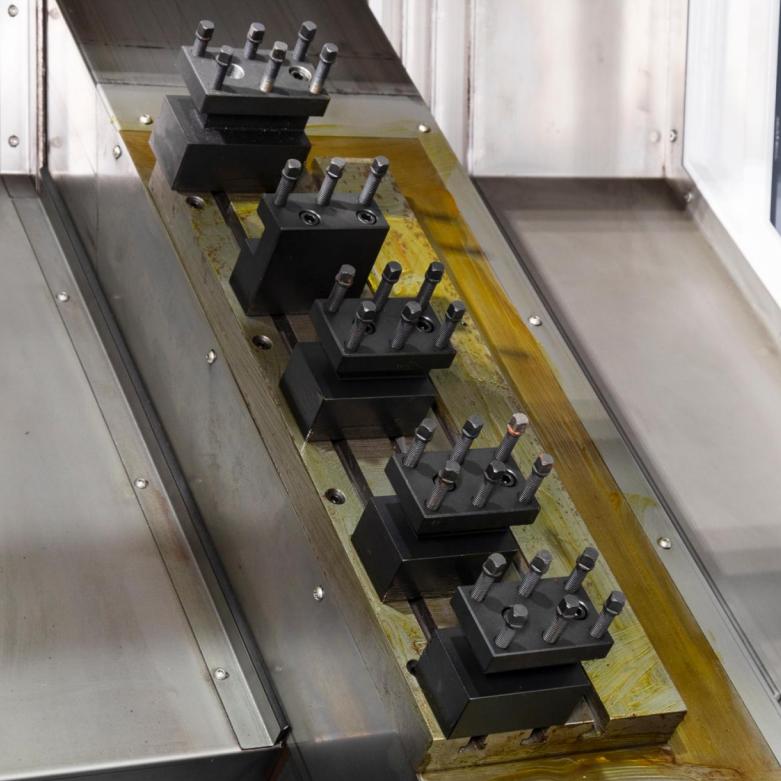

The row tool post on the tool rack are usually arranged in a straight line, which makes tool replacement more convenient and quick, and reduces tool change time. It can install multiple tools in a limited space, and the distance between the tools is fixed, which improves the utilization rate and processing accuracy of the machine tool. The structure is simple and the maintenance cost is low.
