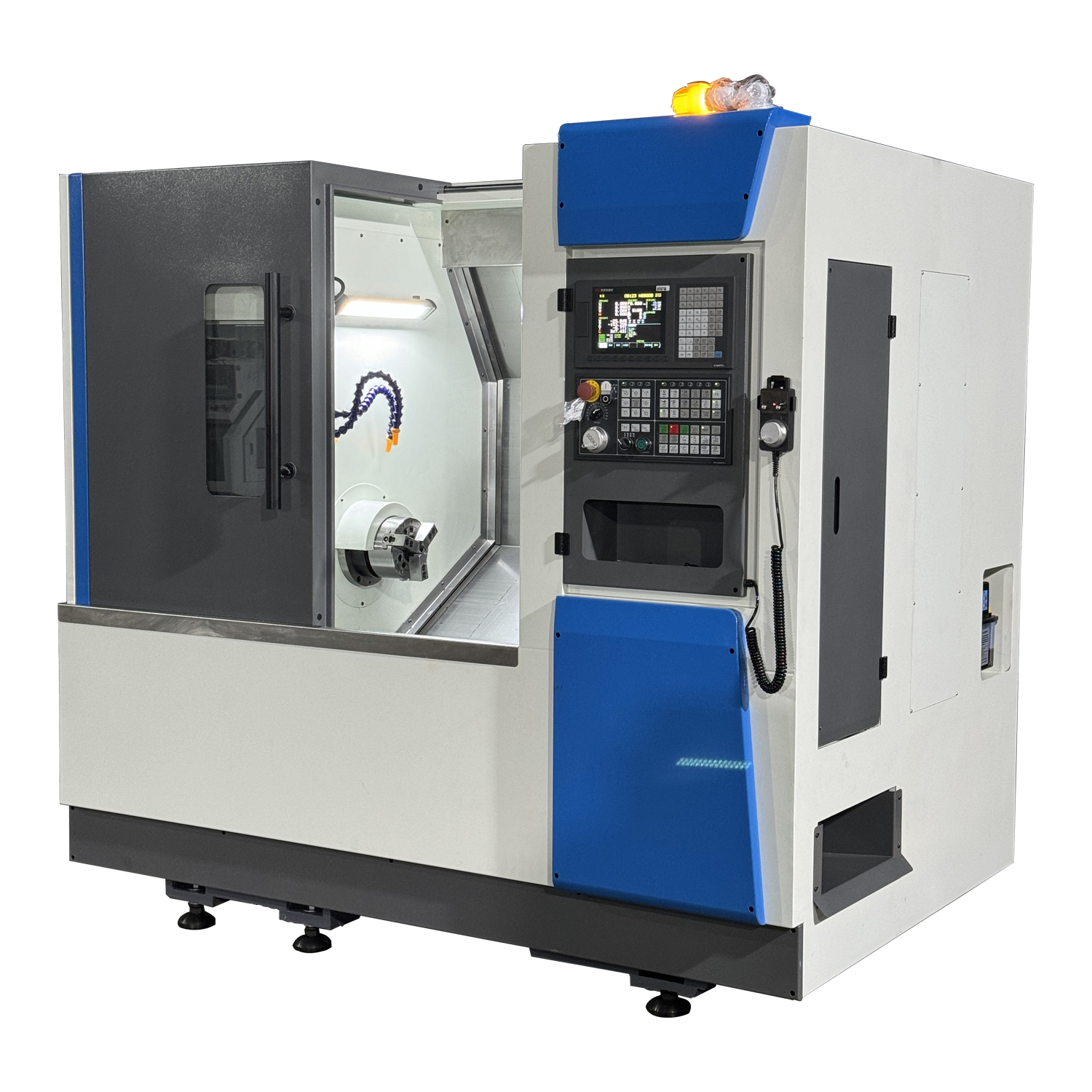

CNC Turning and Milling Machine with Y axis and tailstock

Products Video

Technology Parameter

product description

•

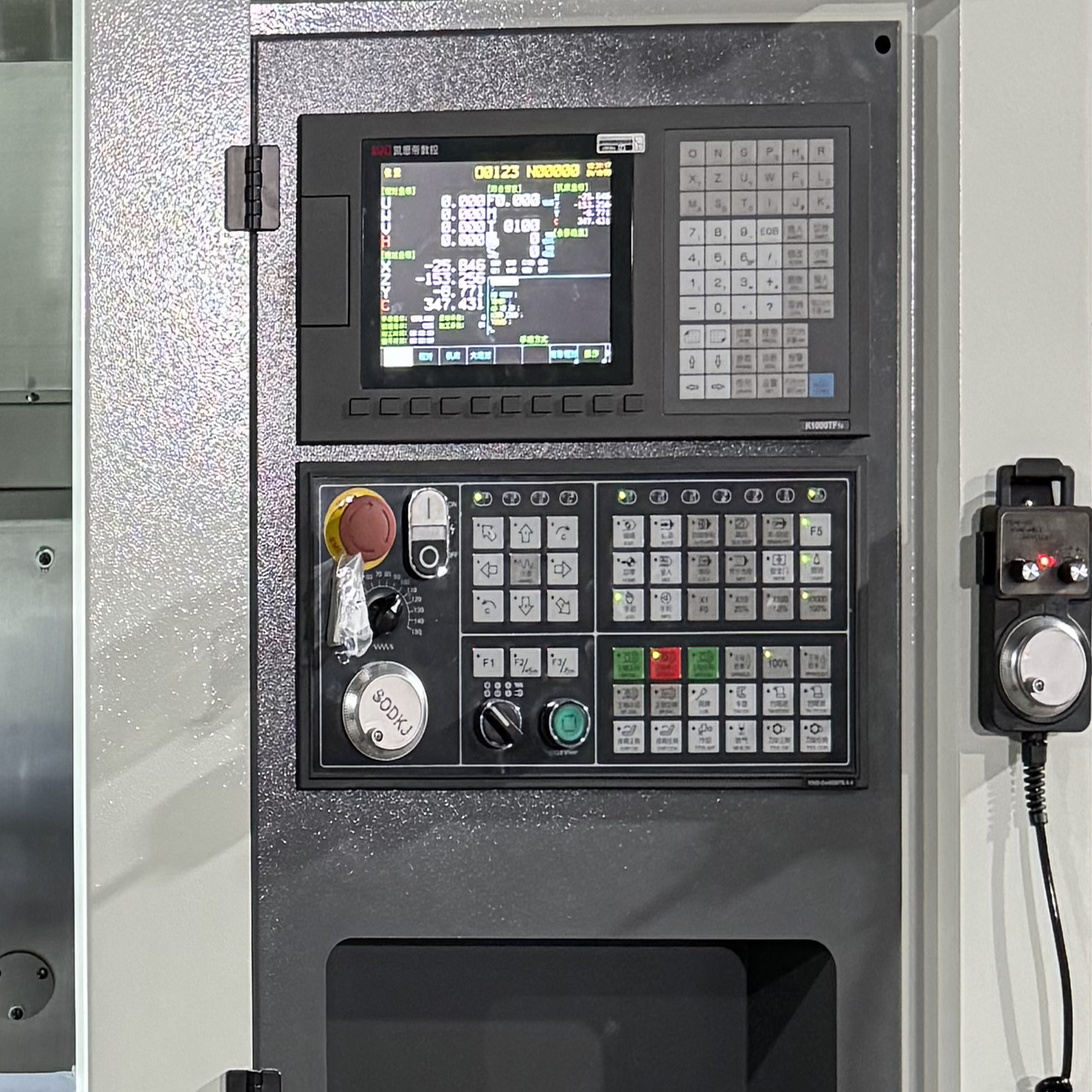

• Syntec CNC Control System

  The machine is equipped with a Syntec CNC control system, a high-performance and user-friendly numerical control unit known for its precision and reliability. This system supports advanced programming, multi-axis interpolation, and real-time monitoring, ensuring smooth operation and high machining accuracy. It features an intuitive interface with touchscreen functionality, allowing operators to easily input commands, adjust parameters, and diagnose errors. The Syntec CNC also supports various G-code standards and offers customizable macro programming for complex machining tasks.

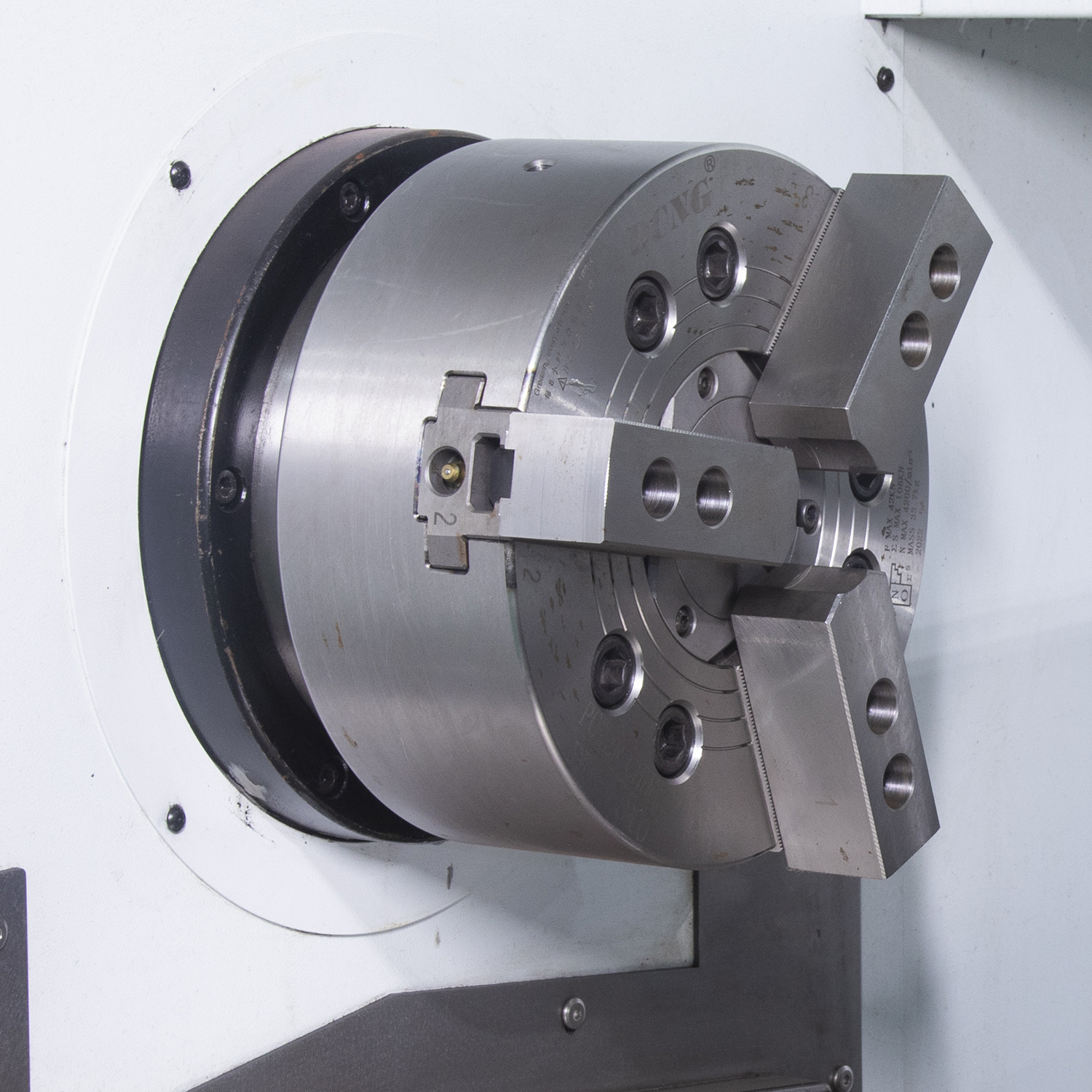

• Hydraulic Clamping with Collet and Tailstock

  The machine incorporates a hydraulic clamping system for secure workpiece holding, utilizing a collet chuck for high gripping force and concentricity. The hydraulic mechanism ensures fast and consistent clamping, reducing setup time and improving productivity. Additionally, a tailstock is integrated for extra support during long or heavy workpiece machining, enhancing stability and precision. The hydraulic system is designed for low maintenance and high durability, with adjustable pressure settings to accommodate different materials and machining conditions.
•

•

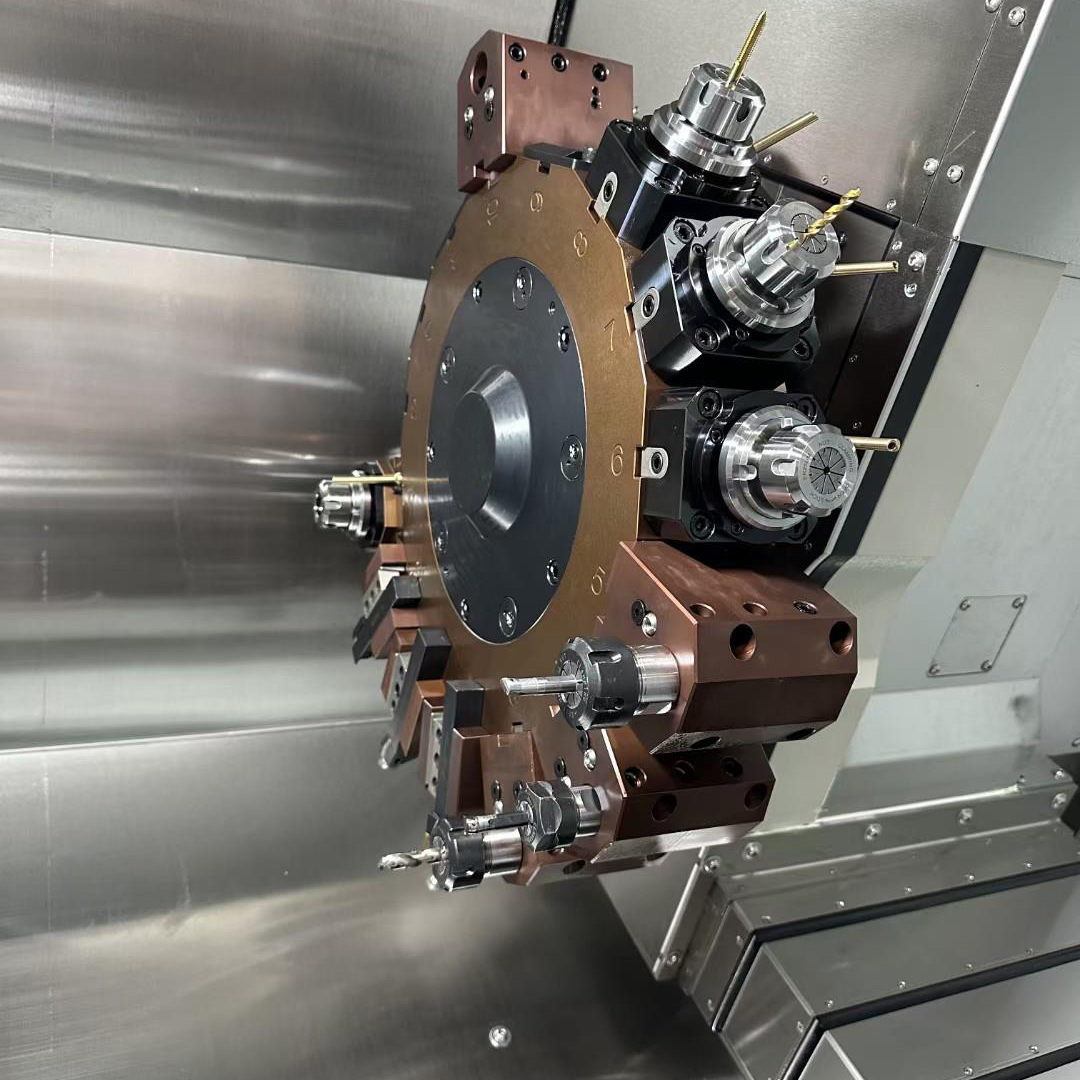

• 12-Station Power Tool Turret with Y-Axis

  A 12-station power tool turret is installed, enabling automatic tool changes for increased efficiency in multi-operation machining. Each station can hold various cutting tools (e.g., drills, taps, end mills), allowing complex parts to be completed in a single setup. The turret includes Y-axis movement, providing additional flexibility for off-center machining, contouring, and milling operations. This feature significantly expands the machine’s capabilities, making it suitable for intricate and high-precision components.

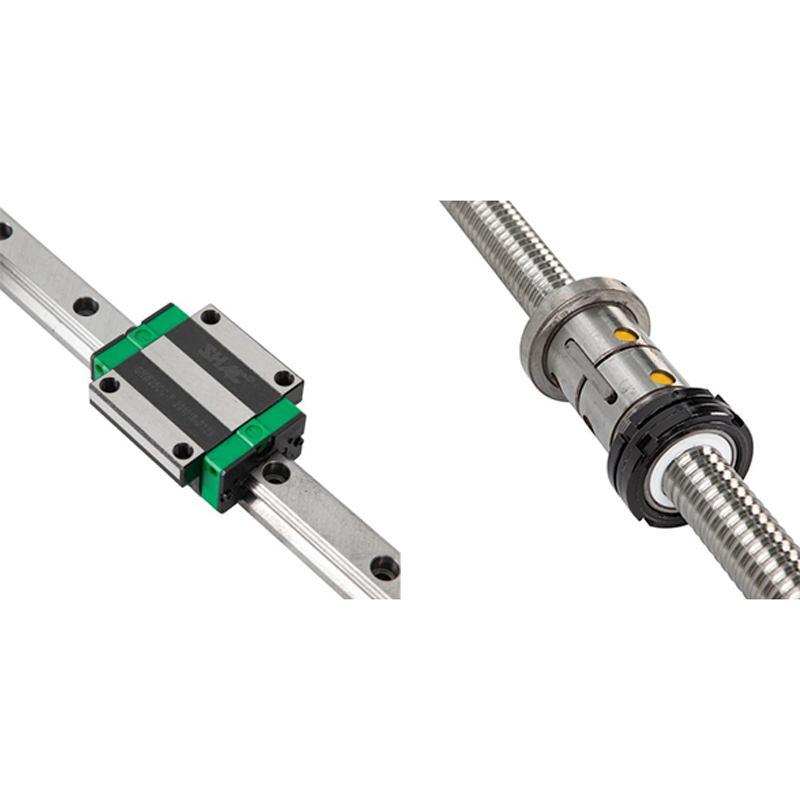

• Screw Lead and Linear Guide Rail

  The machine employs precision ball screw leads for high-accuracy motion transmission in the X, Y, and Z axes, ensuring minimal backlash and smooth movement. Combined with linear guide rails, this setup delivers superior rigidity, reduced friction, and long-term wear resistance. The linear guides enhance dynamic performance, allowing high-speed machining while maintaining tight tolerances. This combination is ideal for applications requiring repeatability and fine surface finishes.
•

•

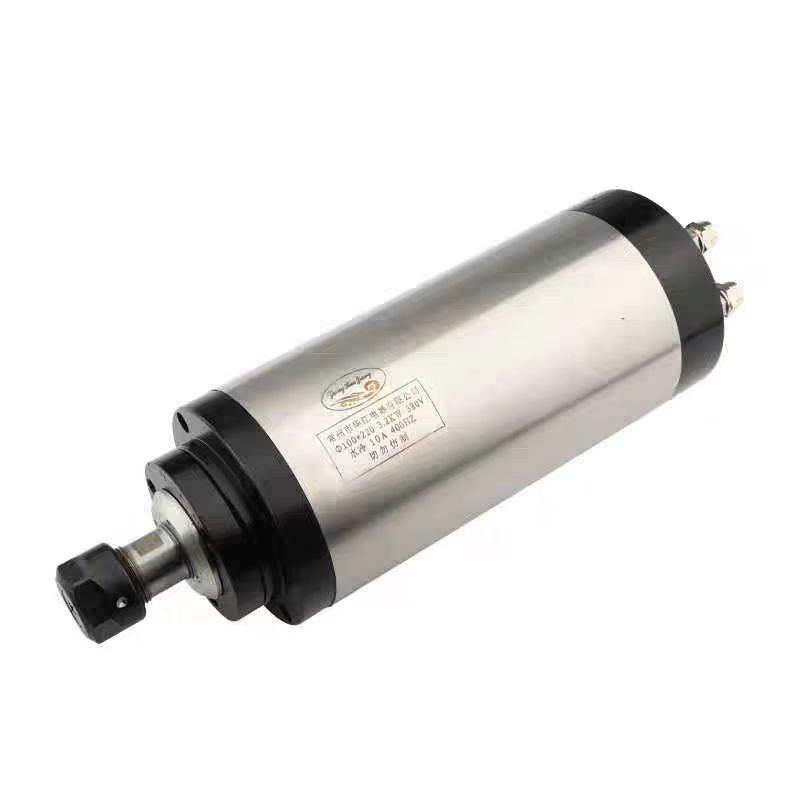

• Electric Spindle

  An electric spindle is integrated into the machine, providing direct-drive power for high-speed cutting operations. Unlike belt-driven spindles, the electric spindle offers faster acceleration, higher RPM (up to 10,000+ depending on model), and better thermal stability. It is equipped with automatic tool clamping and cooling systems to maintain optimal temperature during prolonged use. The spindle’s high torque and precision make it suitable for both heavy-duty cutting and fine finishing tasks.

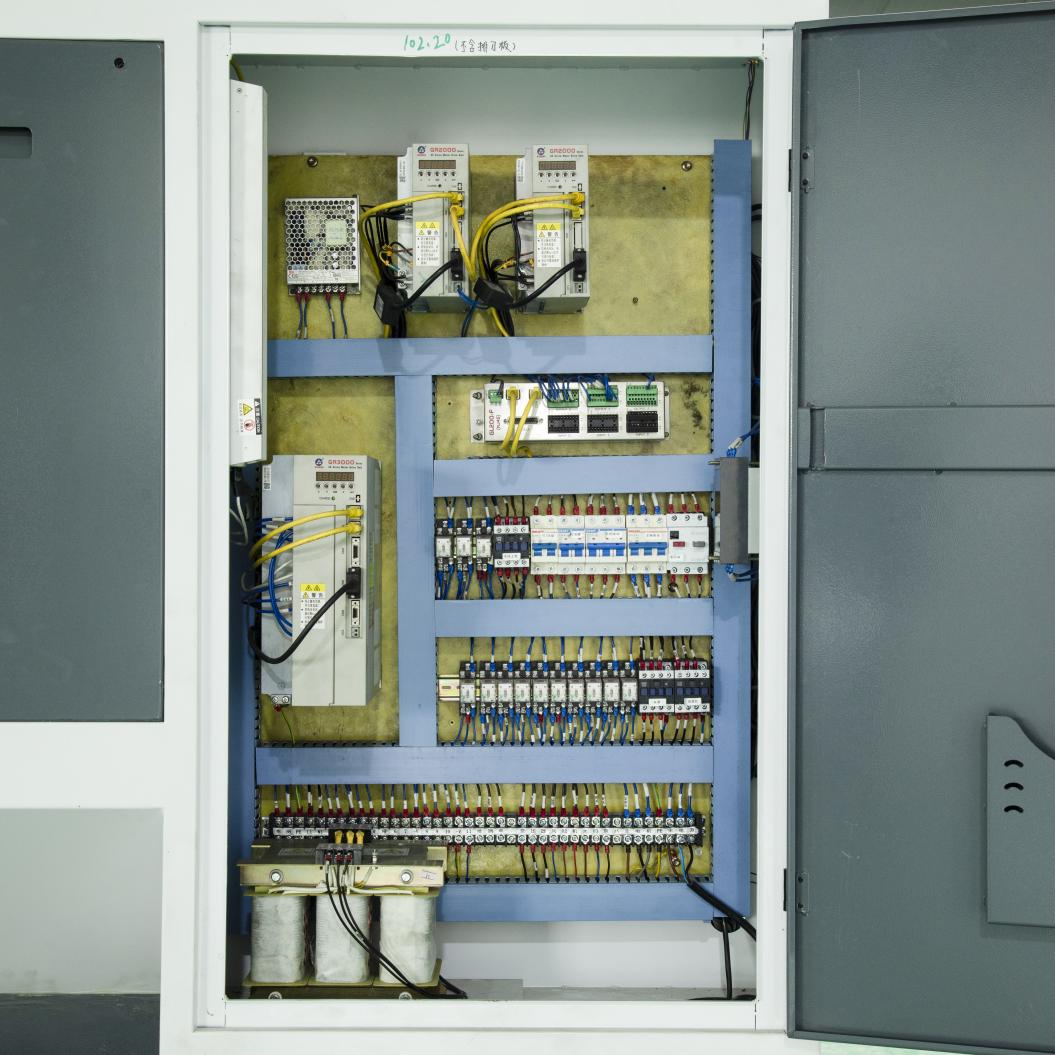

• Separated Electrical Box

  The machine features a separated electrical cabinet, isolating sensitive control components from heat, dust, and vibrations generated during machining. This design improves system reliability and extends the lifespan of electrical parts. The cabinet includes efficient cooling (fans or air conditioning) to prevent overheating and ensure stable operation. Additionally, the separation allows easier maintenance and troubleshooting, as all wiring and modules are organized and accessible.
•
